316 / 304 Stainless Steel Woven Wire Mesh , 4X4 Plain Weave Fabric

Product Categories
Anping County Fuhang Wire Mesh Products Co., Limited
Contact Now

316 / 304 Stainless Steel Woven Wire Mesh , 4X4 Plain Weave Fabric

  • 1
  • 2

Brand Name : FUHANG

Model Number : 4X4Mesh

Certification : ISO9001

Place of Origin : China

MOQ : 1 Square Meter

Price : 1-30 Square Meter $20/Square Meter >30 Square Meters $15/Square Meter

Payment Terms : L/C, T/T

Supply Ability : 1000 Rolles Per Month

Delivery Time : 5-8 work days

Packaging Details : paper tube inside+ wodden box +plastic bag

Material : 304/304L/316/316L/310/310S/Monel

Application : Filters,Woven Wire Mesh,mining,Protecting Mesh

Type : Wire Cloth

Technique : Woven

Wire diameter : 2mm, 1.8mm, 1.6mm, 1.4mm, 1.2mm, 1mm,0.9mm

Weave style : Plain Weave

Width : 0.5-4meter

Usage : oil,space flight,filter,Printing,chmical industry

Length : 1-30m,30m/roll 50m/roll or as required,30m-100m or customerized

Feature : Acid-resisting,corrosion resistent etc.,Anti-corrosion,alkali resist,alkali-resisting etc

Color : Silver

Hole shape : Square Hole

Mesh : 1-635mesh

Advantage : Superior wire , standard mesh

Mesh count : 2-635mesh

Sample : free

Name : 304 316 4Mesh Plain Woven Stainless Steel Wire Mesh

Packing : paper tube inside+ wodden box +plastic bag +

Contact Now

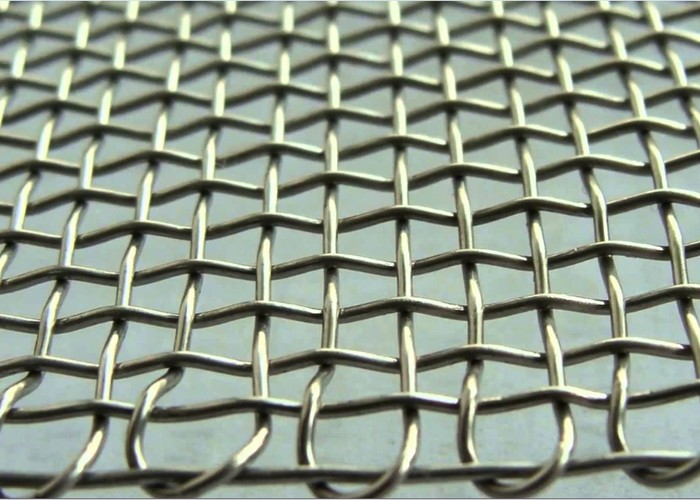

316 / 304 Stainless Steel Woven Wire Mesh

Stainless steel wire mesh, also known as wire cloth or wire fabric, is renowned for its remarkable versatility. The distinguishing characteristic of wire mesh is the matrix of wires that are arranged at 90-degree angles. We can produce stainless steel wire mesh with stainless steel wire material in SUS/AISI 201, 202, 304,304L,310, 310S, 316, 316L ,MONEL ,321 ,430 etc.

Stainless steel wire mesh with its excellent resistance against acid, alkali, heat and corrosion, find extensively uses in processing of oil, chemical, food, making wire mesh filter, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace and machine making etc.

316 / 304 Stainless Steel Woven Wire Mesh , 4X4 Plain Weave Fabric316 / 304 Stainless Steel Woven Wire Mesh , 4X4 Plain Weave Fabric

316 / 304 Stainless Steel Woven Wire Mesh , 4X4 Plain Weave Fabric

Features

  • 4 wires per inch
  • Material is hard to bend by hand and can be cut with tin snips or aircraft shears
  • Commonly used for air vents and filters
  • This sturdy market grade mesh is woven from a standard wire diameter which is heavier than the wire used to weave bolting cloth

Product infomation:

(1) product range : usually,manufactured in 30m ( up to 200) long and in width of 36``, 48``, 1m, 1.2m, 1.5m, 2.0m etc. or cut to length panels as per client’s requirement.

(2) Packing: water-proof paper ,woven bag and also can be made as per client requirement

(3) weave:This type of mesh is available in Plain Weave, Twill Weave ; Plain Dutch Weave, Dutch Twill Weave.

316 / 304 Stainless Steel Woven Wire Mesh , 4X4 Plain Weave Fabric316 / 304 Stainless Steel Woven Wire Mesh , 4X4 Plain Weave Fabric316 / 304 Stainless Steel Woven Wire Mesh , 4X4 Plain Weave Fabric316 / 304 Stainless Steel Woven Wire Mesh , 4X4 Plain Weave Fabric

(4) mesh counts: 1 mesh to 635 mesh.

(5) sample: available.

Benefits
Stainless steel wire mesh has excellent corrosion resistance
Square hole and accurate mesh size
Wire diameter and mesh with ratio reasonable
Wear-resistant and firm in structure
High opening rate and low pressure loss
Non magnetic in the annealed condition
Good air permeability, high flow rate
With an abundant stock

Ⅰ. Plain Weave Stainless Steel Wire Mesh Mesh

Mesh Count per Inch Wire Diameter (mm) Aperture Size (mm) Open Area Weight for Stainless Steel (kg/sq m)
2 1.8 10.9 74% 3.22
2 1.6 11.1 76% 2.54
2 1.4 11.3 79% 1.95
3 2 6.467 58% 5.96
3 1.8 6.667 62% 4.83
3 1.6 6.867 66% 3.82
3 1.4 7.067 70% 2.92
4 2 4.35 47% 7.95
4 1.8 4.55 51% 6.44
4 1.6 4.75 56% 5.09
4 1.4 4.95 61% 3.89
4 1.2 5.1 65% 3.11
4 1 5.35 71% 1.99
4 0.9 5.45 74% 1.61
5 1.2 3.83 57% 3.88
5 1 4.08 65% 2.48
6 1.6 2.633 39% 7.63
6 1.4 2.833 45% 5.84
6 1.2 3.033 51% 4.29
6 1 3.233 58% 2.98
6 0.9 3.333 62% 2.41
6 0.8 3.433 66% 1.91
6 0.71 3.523 69% 1.5
8 1.25 1.925 37% 6.21
8 1.12 2.055 42% 4.99
8 1 2.175 47% 3.97
8 0.9 2.275 51% 3.22
8 0.8 2.375 56% 2.54
8 0.71 2.465 60% 2
8 0.63 2.545 64% 1.58
8 0.56 2.615 68% 1.25
10 0.9 1.64 42% 4.02
10 0.8 1.74 47% 3.18
10 0.71 1.83 52% 2.5
10 0.63 1.91 57% 1.97
10 0.56 1.98 61% 1.56
10 0.5 2.04 65% 1.24
12 0.8 1.317 39% 3.82
12 0.71 1.407 44% 3.01
12 0.63 1.487 49% 2.37
12 0.56 1.557 54% 1.87
12 0.5 1.617 58% 1.49
12 0.45 1.667 62% 1.21
14 0.56 1.254 48% 2.18
14 0.5 1.314 52% 1.74
14 0.45 1.364 57% 1.41
14 0.4 1.414 61% 1.11
14 0.355 1.459 65% 0.88
14 0.315 1.499 68% 0.69
16 0.63 0.958 36% 3.15
16 0.56 1.028 42% 2.49
16 0.5 1.088 47% 1.99
16 0.45 1.138 51% 1.61
16 0.4 1.188 56% 1.27
16 0.355 1.233 60% 1
16 0.315 1.273 64% 0.79
18 0.236 1.175 83% 0.5
20 0.56 0.71 31% 3.12
20 0.5 0.77 37% 2.48
20 0.45 0.82 42% 2.01
20 0.4 0.87 47% 1.59
20 0.355 0.915 52% 1.25
20 0.315 0.955 57% 0.99
24 0.45 0.608 33% 2.41
24 0.355 0.703 44% 1.5
24 0.315 0.743 49% 1.18
28 0.355 0.552 37% 1.75
28 0.315 0.592 43% 1.38
30 0.355 0.492 34% 1.88
30 0.315 0.532 39% 1.48
30 0.28 0.567 45% 1.17
30 0.25 0.597 50% 0.93
30 0.224 0.623 54% 0.75
36 0.25 0.456 42% 1.12
36 0.224 0.482 47% 0.9
36 0.212 0.494 49% 0.8
40 0.224 0.411 42% 1
40 0.212 0.435 47% 0.79
40 0.19 0.445 49% 0.72
40 0.132 0.503 79% 0.35
50 0.21 0.298 34% 1.1
50 0.2 0.308 37% 0.99
50 0.19 0.318 39% 0.9
50 0.16 0.348 47% 0.64
50 0.15 0.358 50% 0.56
60 0.18 0.243 33% 0.97
60 0.16 0.263 39% 0.76
60 0.14 0.283 45% 0.58
70 0.15 0.213 34% 0.78
70 0.14 0.223 38% 0.68
70 0.125 0.238 43% 0.54
80 0.14 0.178 31% 0.78
80 0.125 0.193 37% 0.62
100 0.112 0.142 31% 0.62
100 0.1 0.154 37% 0.5
100 0.09 0.164 42% 0.4
100 0.08 0.174 47% 0.32
120 0.09 0.122 33% 0.48
120 0.08 0.132 39% 0.38
120 0.065 0.147 48% 0.25
140 0.08 0.101 31% 0.45
150 0.071 0.098 34% 0.38
150 0.065 0.109 42% 0.27
165 0.05 0.104 46% 0.2
180 0.06 0.081 33% 0.32
180 0.05 0.091 42% 0.22
200 0.05 0.077 37% 0.25
200 0.04 0.087 47% 0.16
230 0.036 0.074 45% 0.15
250 0.04 0.062 37% 0.2
270 0.04 0.054 33% 0.21
270 0.036 0.058 38% 0.17
300* 0.04 0.045 28% 0.24
300* 0.036 0.055 42% 0.13
325* 0.036 0.042 29% 0.21
325 0.028 0.05 41% 0.13
350* 0.03 0.043 34% 0.16
400* 0.03 0.034 27% 0.18
500* 0.025 0.026 26% 0.16

Ⅱ. Dutch Weave Stainless Steel Wire Mesh

Mesh Wire Diameter Weave
Warp Shute
in mm in mm
12x64 0.023 0.58 0.0165 0.42 Plain
14x88 0.019 0.48 0.012 0.30 Plain
14x110 0.016 0.40 0.011 0.28 Plain
24x110 0.014 0.355 0.010 0.25 Plain
16X200 0.014 0.355 0.010 0.25 Twill
30X150 0.009 0.23 0.007 0.18 Plain
20X200 0.0135 0.34 0.011 0.28 Twill
40X200 0.007 0.18 0.0055 0.14 Plain
20X300 0.010 0.25 0.007 0.18 Twill
30X250 0.010 0.25 0.008 0.20 Twill
20X350 0.010 0.25 0.006 0.15 Twill
20X250 0.010 0.25 0.0082 0.21 Twill
50X600 0.007 0.18 0.0035 0.09 Twill
28X400 0.007 0.18 0.005 0.13 Twill
50X250 0.0055 0.14 0.0045 0.11 Plain
28X500 0.007 0.18 0.0045 0.11 Twill
50X700 0.0055 0.14 0.003 0.076 Twill
80X700 0.004 0.10 0.003 0.076 Twill
100X1000 0.004 0.10 0.002 0.051 Twill
165X800 0.0028 0.071 0.002 0.05 Twill
165X1400 0.0028 0.071 0.0016 0.04 Twill
200X1400 0.0028 0.071 0.0016 0.04 Twill
325X2300 0.0014 0.035 0.001 0.025 Twill

ABOUT OUR COMPANY

Anping County Fuhang Wire Mesh Products Company Limited is located in Anping County, Hebei Province, China. Fuhang Wire Mesh is a specialized manufacturer and exporter of metal wire mesh products. Capable of providing successfully top-quality wire mesh products and services for purchasers from over 50 countries and regions. Fuhang Wire Mesh introduces updated technology and exquisite process while adopting exquisite and sensible process flow. We have the complete testing and measuring equipment, ensuring the stable and reliable quality of the products. In one word, we are ready to supply our customers with good quality products and service in accordance with their requirements.

316 / 304 Stainless Steel Woven Wire Mesh , 4X4 Plain Weave Fabric316 / 304 Stainless Steel Woven Wire Mesh , 4X4 Plain Weave Fabric316 / 304 Stainless Steel Woven Wire Mesh , 4X4 Plain Weave Fabric316 / 304 Stainless Steel Woven Wire Mesh , 4X4 Plain Weave Fabric

316 / 304 Stainless Steel Woven Wire Mesh , 4X4 Plain Weave Fabric316 / 304 Stainless Steel Woven Wire Mesh , 4X4 Plain Weave Fabric

FAQ

1. Are you factory/manufacturer or trader?
We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about extra charges by the middle man or trader.

2. Which countries do you export to?
Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand,South Korea and so on.

3. Can I get free samples?
If the sample is available, yes, can be free. If unavailable, need to customize.

4. What is your minimum order quantity?
Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.

5. Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram
